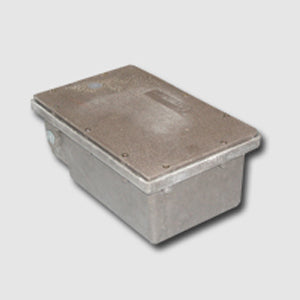

Techlight CBB Composite Burial Enclsoure with Low Voltage Transformer

TECHLIGHTSKU: CBB

Price:
Sale price$0.00 USD

Fast & Easy Quote Request For Techlight USA

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

Techlight CBB Composite Burial Enclsoure with Low Voltage Transformer

Construction

Made from a compression molded, fiberglass reinforced polyester composite housing. It is resistant to rust, corrosion, oils, gasoline, and detergents. Provided with a 600W Low Voltage transformer that is fully encapsulated. Comes standard with junction compartment and anti-siphon barrier. Corrosion resistant stainless steel hardware. Dark Bronze finish is standard on the burial box. ETL rated for wet locations.

Electrical System

Housing is prewired with high temperature wire. Silicone filled, waterproof wire nuts and potting compound are provided for installation. 120V input / 12V output. Total wattage varies based on model type.

Mounting

Mount composite burial enclosure in excavated hole with allowance for a minumum of 3" backfill. Two 3/4" NPT and two 1/2" NPT conduit entries are provided. Flexible conduit (not provided) is recommended for connections to aid in fixture placement/adjustment. Housing cover is fully gasketed to provide a water tight seal.

Product Files

Click for Spec Sheet
