Description

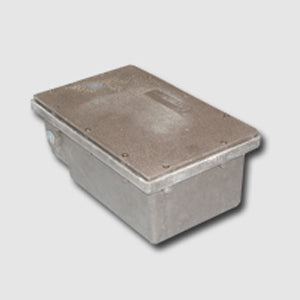

Techlight CBB03 175W Mercury Vapor Composite Burial Box
Construction
Made from a compression molded, fiberglass reinforced polyester composite housing. An Anti-Siphon Chamber is provided to ensure no water can enter the main housing. ETL listed for wet locations.
Finish
Color impregnated composite box features Dark Bronze finish as the standard.
Optical System
A variety of optical systems are available depending on the bullet size and wattage chosen. Up shields, down shields, and tube shields are all available. Contact the factory for additional options needed for specific applications.
Electrical System
Available with a 175W Mercury Vapor multitap CWA ballast. Pre-wired at specified voltage using a quick disconnect. Two 3/4" NPT and two 1/2" NPT conduit entries are provided.
Mounting
The Burial Box is designed for direct burial mounting with the appropriate backfill. See mounting instructions for specific information regarding installation.
Product Files
