Description

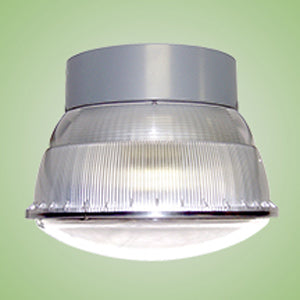

Techlight DLG Deluxe Garage Canopy
Application
The DLG Canopy light was designed as a high performance canopy light for parking garages. The removable upper reflector allows for uplight when elimnated. It is segmented to allow the installer to direct the light specifically to the points of egress and away from a drivers direct line of sight.
Construction
The upper assembly is a heavy duty round die-cast aluminum housing. Tool-less entry to the optical assembly is provided for easy and quick maintenance. ETL listed.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
The lower assembly is provided with a UV stabilized polycarbonate lens to reduce yellowing and provide vandal resistance. A removable upper reflector allows for uplight when eliminated. It can be provided in segments to allow the installer to direct the light specifically to the points of egress and away from a drivers direct line of sight.
Electrical System
All HID lamp options are provided with a medium base 4KV rated socket. Available HID wattages are 70W through 175W pulse start metal halide and 70W through 150W high pressure sodium with standard magnetic high power factor ballasts. A 2-lamp x 42W PL fluorescent option is available in 120/277V. All electrical components come securely mounted to the housing for safety and convenience.
Mounting
The fixture comes standard with a "quick mount" The fixture is designed to hang independently while being installed. This frees the installers hands to make critical wire connections with speed and ease. Designed to mount directly to a standard 4" junction box.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
