Techlight ELV900 900W Low Voltage Transformer and Enclosure
Roll over image to zoom in Click on image to zoom
Techlight ELV900 900W Low Voltage Transformer and Enclosure

Techlight ELV900 900W Low Voltage Transformer and Enclosure

TECHLIGHTSKU: ELV900
Price:
$0.00 USD

Fast & Easy Quote Request For Techlight USA

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Description

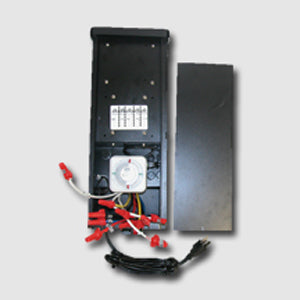

Techlight ELV900 900W Low Voltage Transformer and Enclosure

Design

The ELV900 was designed as an economical and durable transformer enclosure. It features a fully encapsulated 900W low voltage transformer. Keyhole mounts are provided on the backside of the enclosure for quick and secure mounting. Custom finishes available upon request.

Technical Info

Constructed from formed aluminum. A 6-ft 16/3 SJ TW cord with a grounded straight blade plug comes standard. Field installable timer and photocells are available. Each unit is provided with four 3/4" and one 1/2" knockouts on the underside for low voltage exit, and two 1/2" knockouts on each side for accessory mounting. Two terminal blocks with color coded secondaries include 12V, 12V, 13V, 14V, 15V, 15V, 24V, and COM output taps on each block.

Product Files

Click for Spec Sheet
