Description

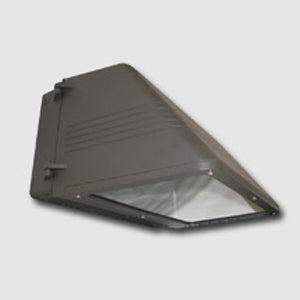

Techlight LWP-CO Large Cutoff Wall Pack
Construction
Constructed with a full cutoff die cast aluminum housing. A tempered clear glass lens protects the optical system. Gasketed side hinge door for a weatherproof seal. Stainless steel hardware.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied. Standard colors available: Black, Bronze, White, OD Green, US Green. Custom colors available upon request.
Optical System
Made for higher mounting heights ranging from 18 to 25. Two piece pinged aluminum reflector. Tempered glass lens. Meets Dark Sky requirements for full cutoff fixtures.
Electrical System
Provided with a mogul base 4KV pulse rated socket. Fixtures are available with with up to 400W Metal Halide, 400W High Pressure Sodium, and dual 42W Fluorescent light sources. Wall Packs come with an option of Multi-Tap (120V, 208V, 240V, 277V) or 480V high power factor ballasts.
Mounting
Built in template for mounting to electrical boxes. Threaded 1/2" NPT knockouts provided on the side and rear of fixture.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
