Description

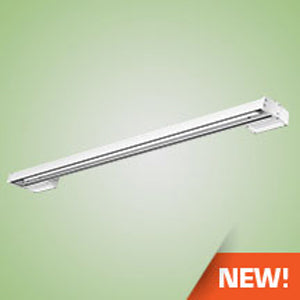

Techlight LWW LED Wall Wash/Sign Lighting
Application
The LWW Series Linear LED Wall Wash is designed for illuminating architectural surfaces and commercial signage. Areas with limited accessibility due to fixture location or where heavy pedestrian or vehicle traffic makes maintenance difficult are ideal applications. The low-profile design keeps the fixture placement discrete for both ground and wall mounted applications.
Features
The heavy-duty housing is constructed of extruded aluminum with die cast aluminum connectors.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state-of-theart paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Electrical System
Long life LEDs and high efficiency drivers work together to provide superior performance in a safe and efficient package. L95 at 10K hours L70≥50K hours. LEDs available in 4000K and 5000K with a CRI >80. Electronic drivers provided in remote NEMA 3R raintight enclosure. 120-277V drivers. 10kV surge protection provided. Power factor >0.9, 0-10V dimming standard.
Mounting
Fixture is provided with 1/2" NPS aluminum stems at each mounting point and powder coat finished to match. May be mounted for use as an up light or down light.
Listings
ETL listed for wet locations. Classified according to the new 1598C safety standard. Complies with UL8750. Meets US and Canadian safety standards. RoHS compliant.
Warranty
The complete luminaire is covered by a 5-year limited warranty.
