Description

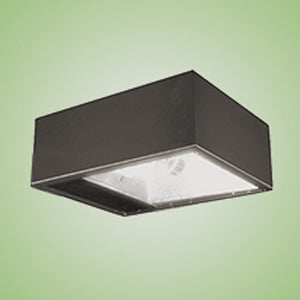

Techlight MSB Orion Series Medium Extruded Shoebox
Application
The MSB Medium Extruded Area Light is designed for general-purpose area lighting. It is the perfect choice for lighting large open areas for safety and security. Wide roadway applications, parking areas, or even wall mount applications for security lighting are all suitable applications for this fixture. The multiple mounting options make this fixture economical and versatile.
Construction
The housing and door frame are constructed of extruded aluminum. The flat tempered glass lens is sealed in place and a door gasket is provided for weather tight protection. ETL listed for wet locations.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Made with a state of the art high performance reflectors that use high gloss components to achieve precise photometric distributions The fixture is a full cut-off light fixture and is Star Light Friendly in the horizontal position only.
Electrical System
Available in 150W thru 400W standard metal halide, pulse-start metal halide, and high pressure sodium. Comes standard with a 4KV pulse rated mogul base socket. Each 60HZ CWA multi-tap or 480V ballast is pre-wired and installed for convenience.
Mounting
Standard mounting options include 2", 8" and 10.75" Straight Arms with internal bolt guides for square and round pole mounting on shoebox models. 2" Adjustable Slip Fitter and Yoke Mount available for floodlight models. Additional mounting options are available.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
Product Files
Click for Photometrics-MSBBA2A-PS 25AFG 0DEG.PDF
Click for Photometrics-MSBBA3A-PS 25AFG 60DEG.PDF
Click for Photometrics-MSBBB2A-PS 25AFG 0DEG.PDF
Click for Photometrics-MSBBB3A-PS 25AFG 0DEG.PDF
Click for Photometrics-MSBBC2A-PS 25AFG 0DEG.PDF
Click for Photometrics-MSBBC3A-PS 25AFG 0DEG.PDF
Click for Photometrics-MSBBD2A-PS 25AFG 25DEG.PDF
Click for Photometrics-MSBBD3A-PS 25AFG 25DEG.PDF
