Description

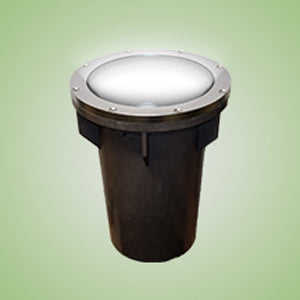

Techlight TDB3W Medium HID/Incandescent Burial Light
Construction
The housing is made of compression molded fiber reinforced polyester composite. The color impregnated SR2 composite will not flake or peal. Multiple ring/guard assemblies are available for a customizable trim finish.
Optical System
Flood and spot reflectors are available for HID E17 lamps. The fixture can accomodate reflector shaped lamps for specific beam patterns. Convex and walk over lenses are both available.
Electrical System
The fixture can be used with up to 70W E17 and Par38 Metal Halide lamp/ballast systems. All ballast trays are thermally protected and come pre-wired to specific line voltages via quick connects. Pre-installed 15 and 30 power cords are available from the factory.
Mounting
The TDB3W Well Light is an in-ground fixture and should be installed with back fill according to the Techlight TDB installation instructions. A 3/4" conduit entry is supplied into the anti-siphon chamber of the housing.
