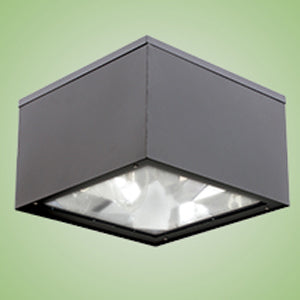

Techlight VBL Polaris Series Large Vertical Burn Shoebox
Application
The VBL Large Vertical Burn Shoebox is a high-performance lumenaire designed for site / area lighting. It is the perfect choice for lighting large open areas for safety and security. Wide roadway applications, parking areas, or even wall mount applications for security lighting are all suitable applications for this fixture.
Construction
The housing and door frame are constructed of formed aluminum. The flat tempered glass lens is sealed in place and a door gasket is provided for weather tight protection. A top cap is provided for easy access and maintenance. ETL listed for wet locations.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Made with a state of the art fully rotatable reflector that uses high gloss components to achieve a precise photometric distribution. Vertical lamp position for optimum efficiency and lamp life. The fixture is a full cut-off light fixture and is Star Light Friendly with a flat lens only.
Electrical System
Available in 400W thru 1000W standard metal halide, pulse-start metal halide, and high pressure sodium. Comes standard with a 4KV pulse rated mogul base socket. Each 60HZ CWA multi-tap or 480V ballast is pre-wired and installed for convenience.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
Click for Photometrics-VBLAC1BA2 30AFG 0DEG.PDF
Click for Photometrics-VBLAC6BA2-PS 30AFG 0DEG.PDF
Click for Photometrics-VBLAE1BA2 30AFG 0DEG.PDF
Click for Photometrics-VBLAE6BA2-PS 30AFG 0DEG.PDF
Click for Photometrics-VBLAF1BA1 30AFG 0DEG.PDF
Click for Photometrics-VBLAG1BA2 25AFG 0DEG.PDF
Click for Photometrics-VBLAG6BA2-PS 25AFG 0DEG.PDF
Click for Photometrics-VBLAH1BA2 30AFG 0DEG.PDF
Click for Photometrics-VBLAH6BA2-PS 30AFG 0DEG.PDF
Click for Photometrics-VBLAK1BA2 30AFG 0DEG.PDF
Click for Photometrics-VBLAK6BA2-PS 30AFG 0DEG.PDF
Click for Photometrics-VBLAL1BA2 30AFG 0DEG.PDF
Click for Photometrics-VBLAL6BA2-PS 30AFG 0DEG.PDF
