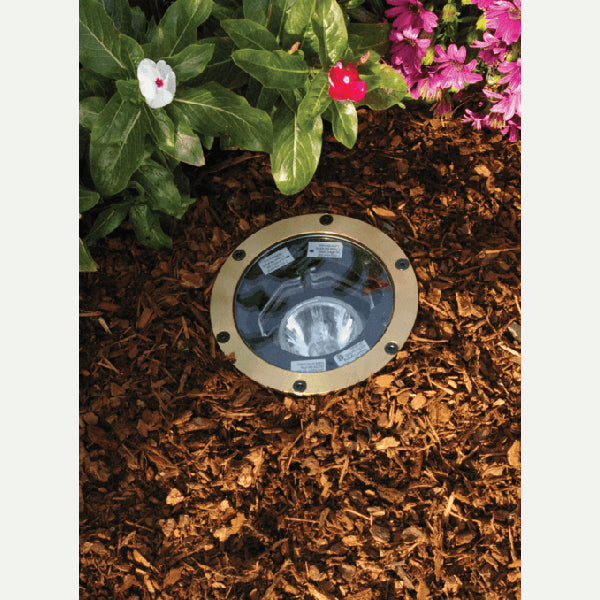

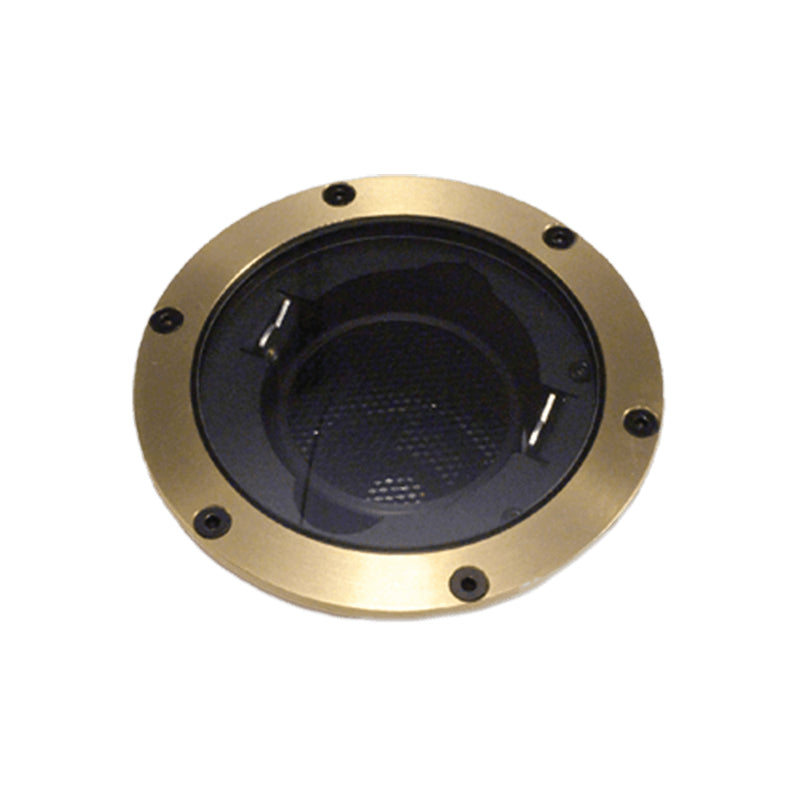

Vision3 IG6 LED Sealed Ingrade Light

Name: Vision3 IG6 LED Sealed Ingrade Light
Brand: Vision3 Lighting
SKU: IG6
Availability: InStock

Vision3 LightingSKU: IG6

Price:

$0.00 USD

Quantity:

Share this product

Select the product options and the quantity and then click the “Request A Quote” button. If you do not see the option you want, note that on the request form. You may include your lighting fixtures list and attach files.
We will contact you with any questions and strive to provide you with a competitive quote as quickly as possible.

Vision3 IG6 LED Sealed Ingrade Light

Precision cast and machined LED lighting fixture with 100-277V input Integral Driver LED or COB LED (with included driver module). Rugged cast bronze construction is suitable for the most corrosive of environments and is designed for in ground mounted up lighting in wet location landscape applications.

Features

IP68 rated. Optional pour collar is suitable for concrete pour applications. Drive-over rated.
Faceplates available in three metal choices and eight styles with tamper-proof, captive screws.
Replaceable tempered 1/4" thick glass lens and silicone lens gasket.
One tool aiming that provides hot-aiming convenience.
Quick disconnects on all wiring connections for easy installation and maintenance.
Integral Driver LED option utilizes patented LEDSense® thermal management to keep LED running at the optimum temperature.
COB LED option with included driver module uses industry standard components to simplify future upgrades.

Housing:

Cast C84400 bronze housing. Four 3/4" NPT conduit entries allow for side entry or bottom entry conduit connection. Water tight pass-thru, in conjunction with included silicone filled wire-nuts, prevents water from entering the housing in the event of the wiring compartment becoming flooded. IP68 rated to a depth of 1 ft. for 60 hours. Optional concrete pour collar available in material and finish to match the faceplate.

Mounting:

Optional mount stand, with or without grout mask, can be used as a stand alone installation mount or tied to a rebar grid for easy mounting and alignment.

Lens:

Tempered, 1/4" thick, stepped lens allows for flush mounting. Optional Slip Reduction Lens increases wet lens friction by over 50%. Molded, high temperature, silicone lens gasket compresses around lens between faceplate and housing for a water tight seal. Both lens and seal are removable for cleaning or replacement.

Faceplate:

Available in cast or machined C84400 bronze or machined 316 stainless steel. Attaches using six 18-8 stainless steel captive screws. Optional Glare Shield, Half Dome, Marker Light, and Rock Guard faceplates available in cast C84400 bronze and allow 360° of rotational alignment. Optional Flanged faceplate available in machined brass or 316 stainless steel.

Lamp Module & Aiming:

Lamp Module allows for one tool hot aiming with 18° vertical and 360° rotational adjustment without having to touch hot LED. Module brackets constructed from black anodized 6061-T6 aluminum. Accessory holder is integral to Lamp Module and accepts up to two lens options.

Finish:

Available in 14 standard TGIC thermo set polyester powder coat paint colors. Cast Bronze faceplates available in two additional finishes: Natural and Aged. Machined Brass faceplates available in three additional finishes: Natural, Aged, and Polished. Machined Stainless faceplates available in three additional finishes: Natural, Brushed, and Polished. Optional pour collar finished to match faceplate.

LED:

Integral Driver LED: 100 to 277 VAC (50/60 Hz) input, 20W max. power (17W@120V, 20W@277V). LED lamp features: integral driver, 1280 lm max output, 75 lm/W max efficacy, field changeable optics (15°, 23°, 35° & 51°), push button selection of light level (100%, 80%, 55% & 18%), 120V phase dimming at highest (100%) light level (see Dimmer Compatibility List), an L70 of 60,000 hrs., and patented LEDSense® thermal management to ensure reliability and lumen maintenance. Note: thermal management system may cause power input and light output to vary slightly depending on fixture material, orientation, lens accessories, mounting, and ambient temperature.

COB LED: COB LED package includes a COB LED module and a 350mA driver module, both field replaceable. COB LED options use modular industry standard components to simplify future upgrades and includes features like: performance of 1800 lm, 16W max input (@350mA), field replaceable optics (20°, 30° & 50°), and an L70 > 55,000 hrs.

Certification:

IP68 rated to a depth of 1 ft. for 60 hours. Drive over durable for up to 5300 lb vehicles, at up to 10 mph (STD, ML1, ML2, or ML4 faceplates only. Other faceplate options are not suitable for drive over applications). CSA tested & certified to US and Canadian safety standards for wet location landscape use.
