Description

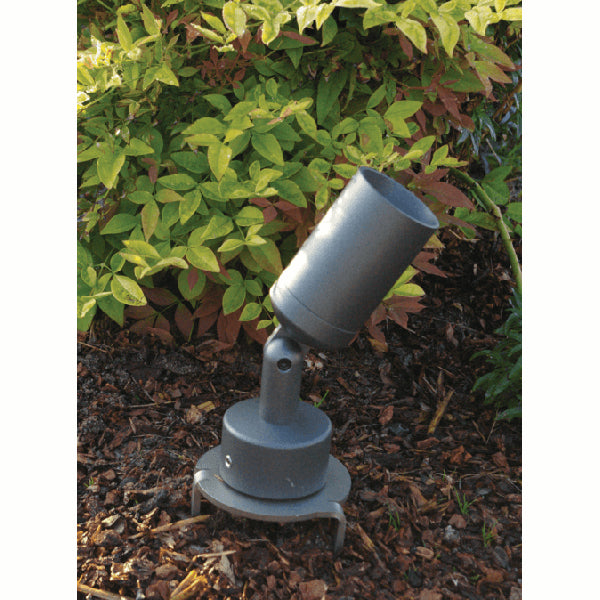

Vision3 MO18 Spike Mount with Cap Option
Stainless steel ground spike with wiring compartment for ground mounted lighting applications. Can be used with low voltage lighting fixtures.
Features
- Heavy walled stainless steel spike will not corrode.
- Portable design for easy installation of low voltage lighting fixtures.
- Mounting cap and cup creates wiring compartment for low voltage connections.
- Single set screw cap option allows for quicker installation and adjustment by using the same hex wrench size as Vision3 locking knuckles.
Spike:
Spike made from corrosion resistant 316 Stainless Steel. Spike Contains a welded 2-1/2" diameter cup for wire connections.
Caps:
Caps are machined from 6061-T6 aluminum, C36000 brass, or 304 stainless steel. Cap contains a 1/2" NPS threaded mounting hole. Standard cap is locked to mount with three 18-8 stainless steel set screws. Single Set Screw cap is locked to mount with one 18-8 stainless steel set screw, which uses the same tool as used on the Vision3 Knuckle for one tool adjustment.
Finish:
TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.
