Description

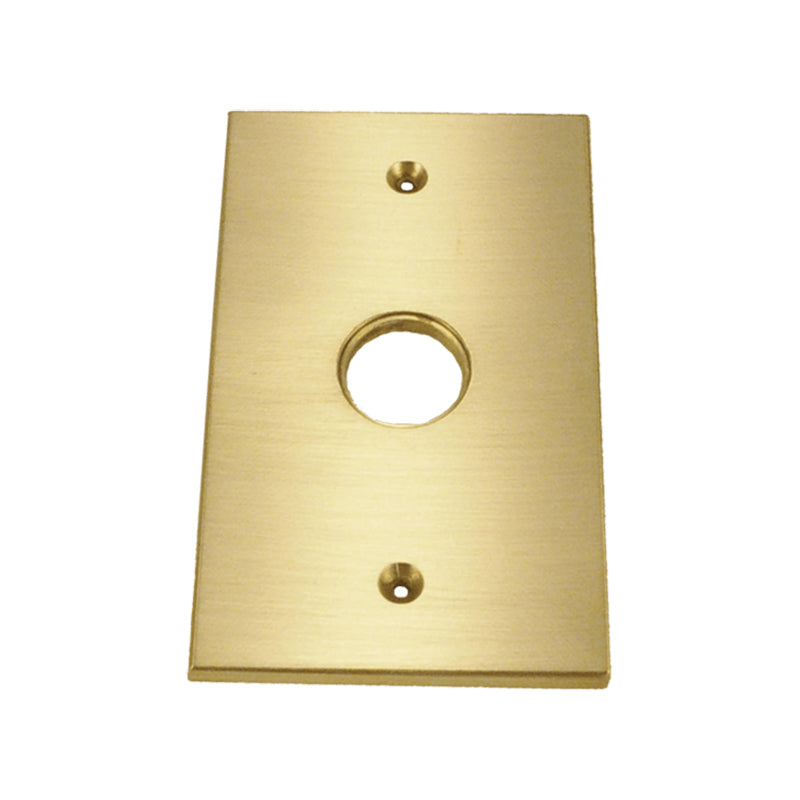

Vision3 MO4 Machined Rectangular Canopy

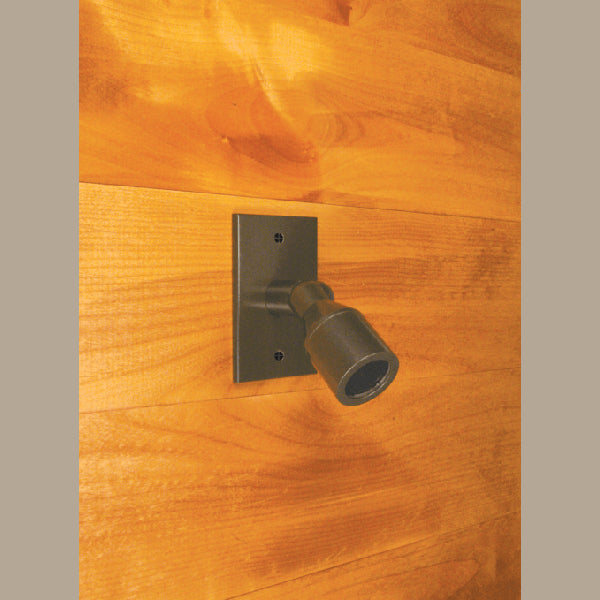

Precision machined rectangular canopy for mounting lighting fixtures on single gang junction box. Can be used for wall or ceiling mounted accent lighting applications.
Features
- Choice of 1/2" NPS threaded or 7/8" non-threaded mount hole(s).
- Each mount hole has an O-ring groove that, in conjunction with the O-ring supplied with all Vision3 lighting fixtures, creates a water tight fixture mount.
Canopy:
Machined 6061-T6 aluminum, C36000 brass, or 304 stainless steel.
Mounting:
Two mounting holes for mounting rectangular machined canopy to industry standard rectangular single-gang junction boxes (hardware and gaskets not supplied).
Fixture Mount:
Available with 1/2" NPS threaded or ø7/8" non-threaded fixture mount hole. O-ring groove allows for sealing between fixture and mounting canopy (All Vision3 flood fixtures come with a high temperature, black Viton O-ring on the knuckle for this purpose).
Finish:
TGIC thermo set polyester powder coat paint available in 14 standard colors. On aluminum model, finish is applied over a corrosion resistant, hexavalent chromium free, RoHS compliant coating. Aluminum model available in one additional metal finish: Clear Anodized. Brass model available in three additional metal finishes: Natural, Polished, and Aged. Stainless steel model available in three additional metal finishes: Natural, Polished, and Brushed.
