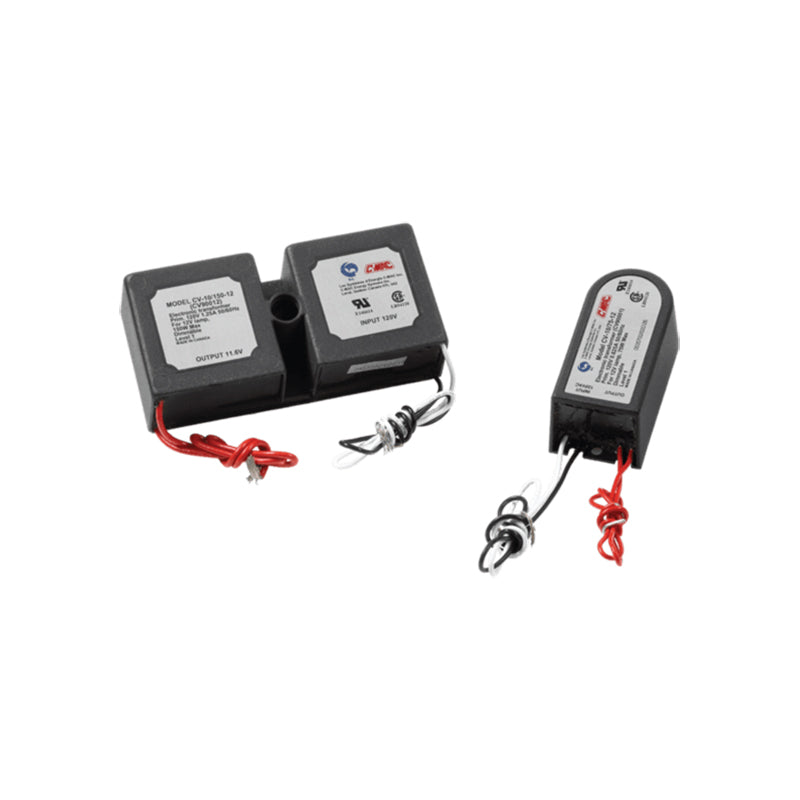

Vision3 XM3 Electronic Transformer

Vision3 XM3 Electronic Transformer

Electronic transformers for damp location installations. Can be used in junction box or other types of installations to power low voltage lighting fixtures.

Features

• Available in 60W, 75W, 80W, & 150W capacities. 50/60Hz.
• 11.6V output increases lamp life of 12V halogen lamps by up to 50%.
• Input voltage choices of 120V, 230V or 277V (varies by version).
• 120V versions are dimmable.
• 60W version has no minimum load and is recommended for use with most LED options.

60W version:

• Electronic circuitry epoxy sealed in an aluminum enclosure.
• Input: 120 VAC, 50/60 Hz.
• Output: 11.5 VAC
• Power factor: >.90.
• Ambient temperature range: -20°C to 50°C.
• Max. case temperature: 85°C.
• Minimum load: No minimum load.
• Dimmable (120V version only).
• Soft start circuitry.
• Electronic short-circuit and overload protection.
• UL tested & certified to US and Canadian safety standards.

75W version:

• Electronic circuitry encapsulated in a flame retardant plastic casing.
• Input: 120, 230, or 277 VAC, 50/60 Hz.
• Output: 11.6 VAC.
• Power factor: >.93.
• THD < 20%.
• Operating frequency: > 20 kHz.
• Operating temperature range: -15°C to 90°C.
• Minimum load: 10W.
• Class A insulation system.
• Dimmable (120V version only). Minimum load of 40 Watts for proper functioning.
• For non short proof units, do not short output conductors.
• CSA & UL tested & certified to US and Canadian safety standards.

80W version:

• Electronic circuitry epoxy sealed in an aluminum enclosure.
• Input: 120 or 277 VAC, 50/60 Hz.
• Output: 11.5 VAC
• Power factor: >.95.
• Ambient temperature range: -20°C to 50°C.
• Max. case temperature: 85°C.
• Minimum load: 5W.
• Dimmable (120V version only).
• Soft start circuitry.
• Electronic short-circuit and overload protection.
• UL tested & certified to US and Canadian safety standards.

150W version:

• Electronic circuitry encapsulated in a flame retardant plastic casing.
• Input: 120 or 277 VAC, 50/60 Hz.
• Output: 11.6 VAC.
• Power factor: >.93.
• THD < 20%.
• Operating frequency: > 20 kHz.
• Operating temperature range: -15°C to 90°C.
• Minimum load: 10W.
• Class A insulation system.
• Dimmable (120V version only). Minimum load of 40 Watts for proper functioning.
• For non short proof units, do not short output conductors.
• CSA & UL tested & certified to US and Canadian safety standards.
